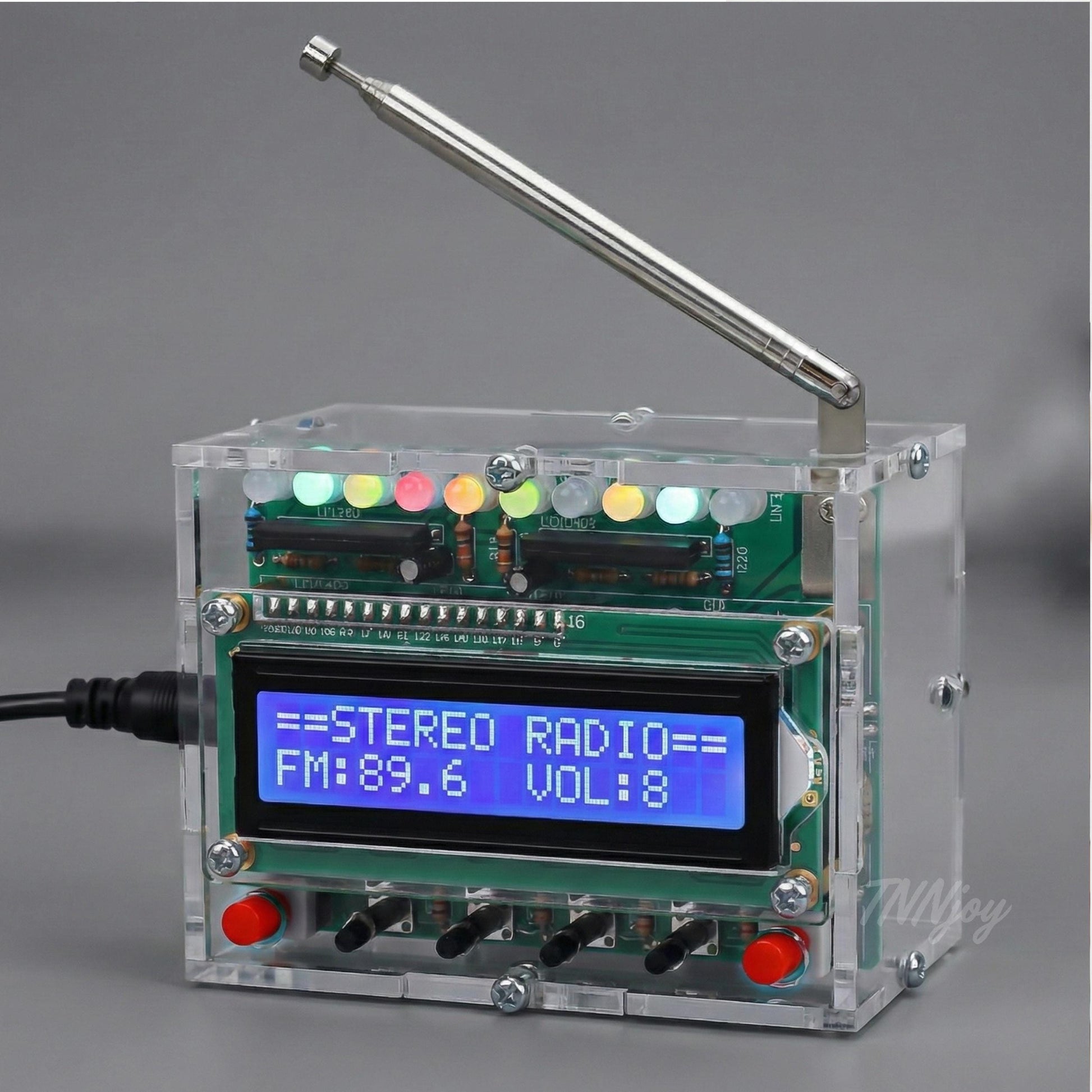

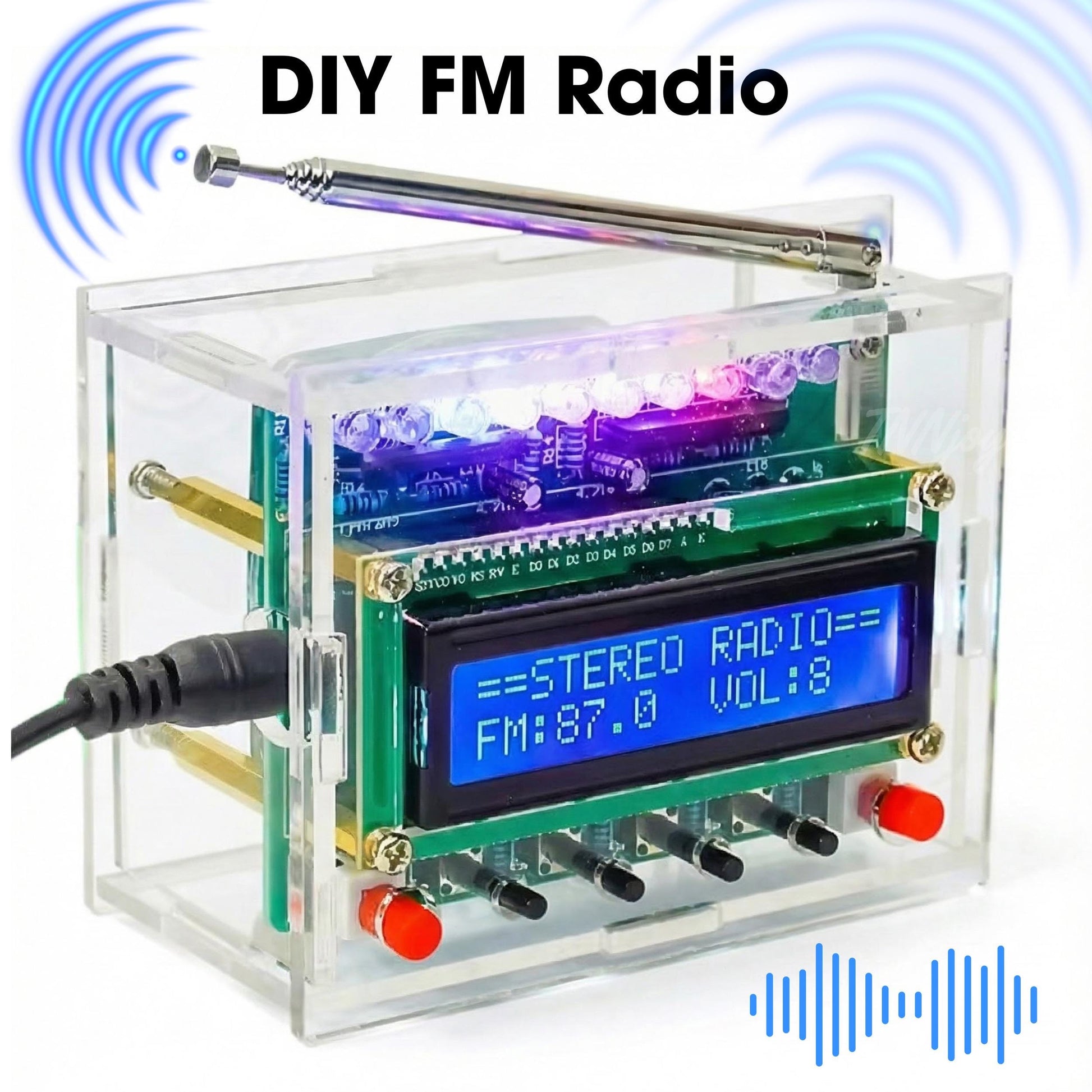

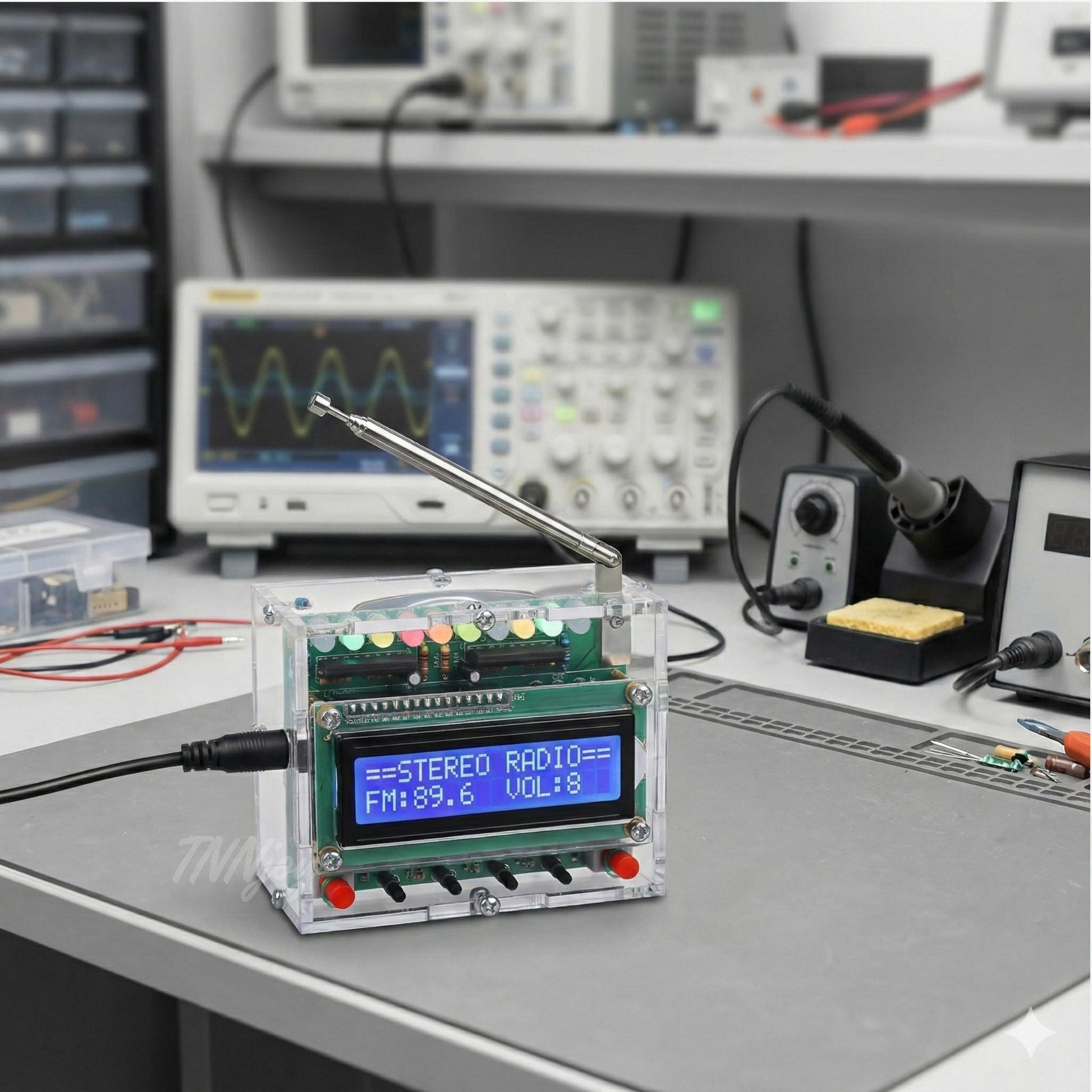

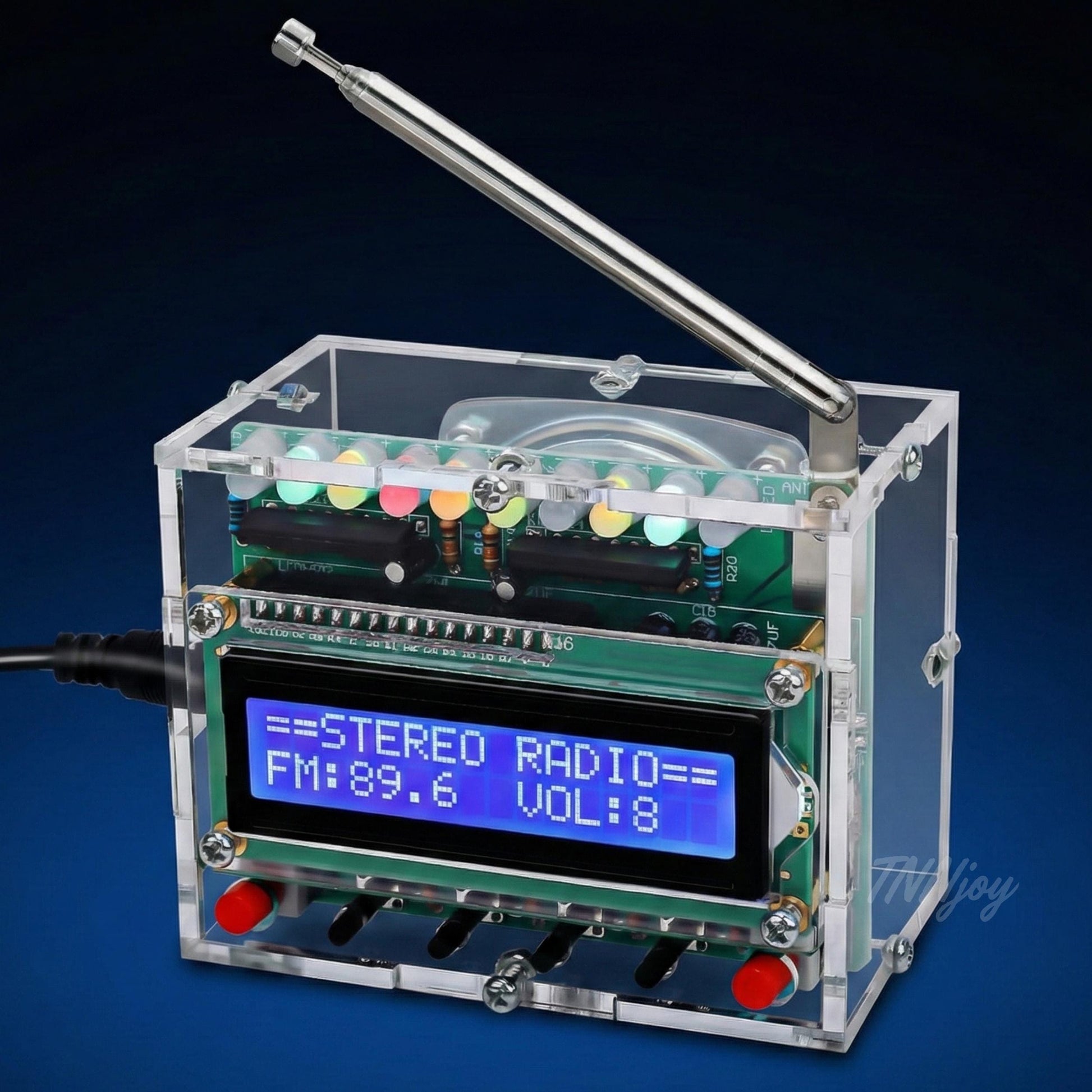

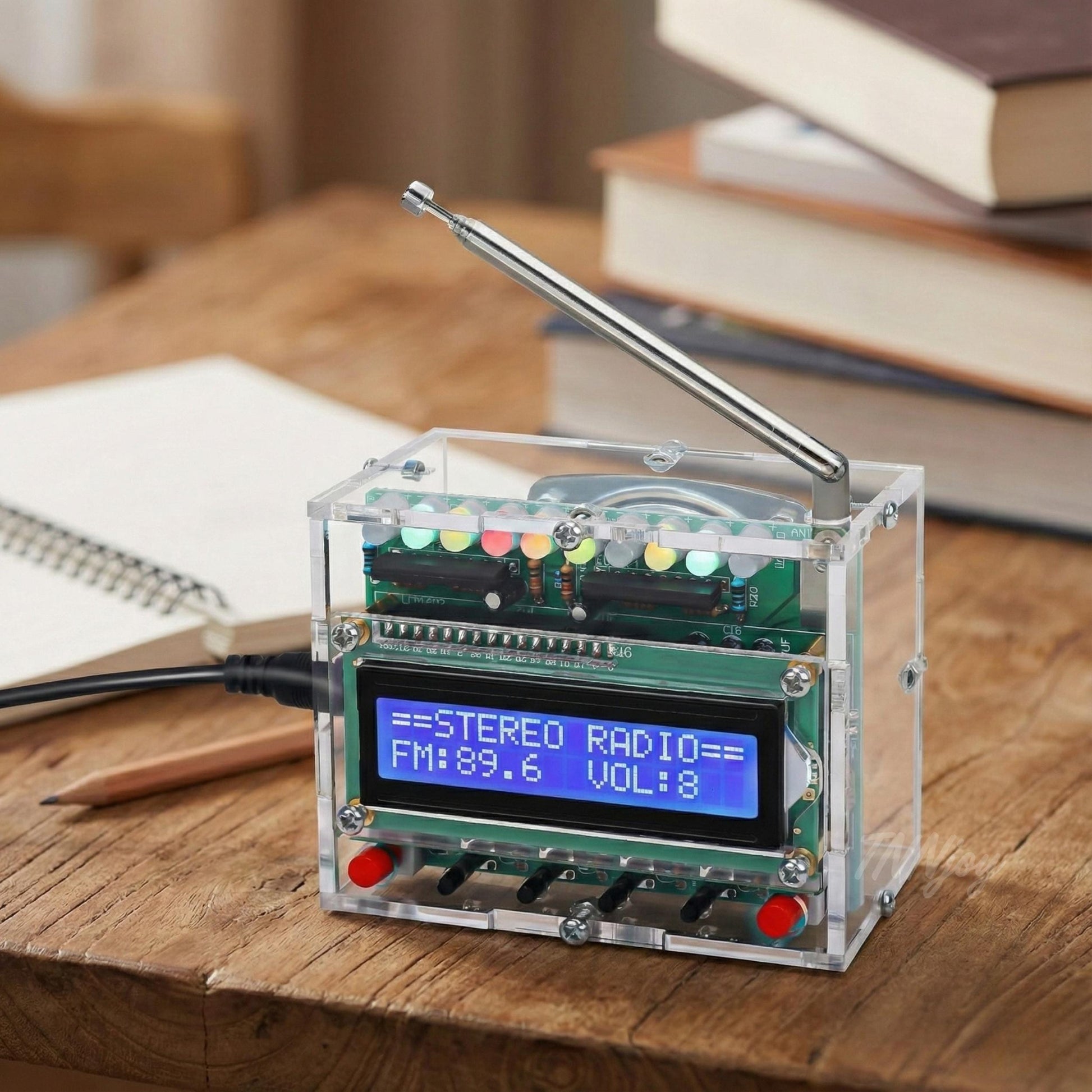

Master the fundamentals of electronics and build your own working FM Radio with the DIY OLED FM Radio Soldering Kit!
Designed for STEM students, electronics hobbyists, and soldering beginners, this hands-on kit provides an incredibly rewarding soldering practice project. Assemble the circuit board step-by-step, solder the components, and watch the bright OLED digital screen light up as you tune into local FM radio stations from 87.0 MHz to 108.0 MHz with crystal-clear audio output!
Key Features & Highlights:
Complete Soldering Practice Project: Includes high-quality PCB with clearly labeled component silkscreen markings, perfect for honing your soldering skills.
Bright Digital OLED Display: Shows exact active FM frequency (87–108MHz), volume level, and signal indicator in real time.
High-Sensitivity FM Reception: Features an integrated digital tuner chip and retractable telescopic antenna for superior station locking.
Crystal-Clear Sound Output: Equipped with an onboard audio power amplifier and dedicated 3W speaker for rich, undistorted sound.

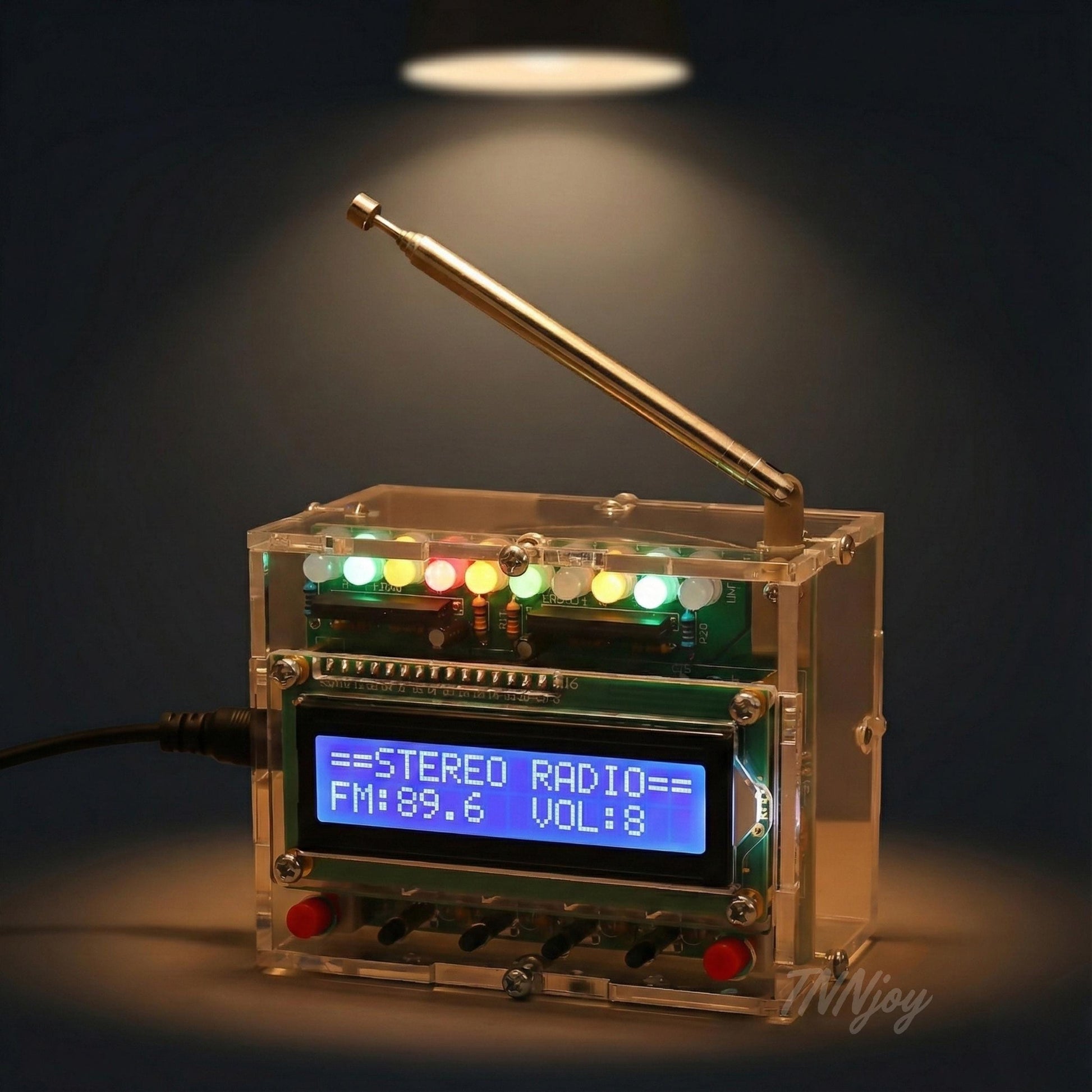

Laser-Cut Protective Enclosure: Housed inside a sleek, transparent acrylic case that protects internal circuitry while showcasing your soldering craftsmanship.
Specifications:
Frequency Range: 87.0 MHz – 108.0 MHz
Display Type: 0.96-inch Digital OLED / LCD Screen
Operating Voltage: DC 4.5V – 5V (Powered via USB or AA battery box)
SKU: ELC-23
Recommended Age: 12+ (Requires basic soldering iron & adult supervision)
Assembly Difficulty: Intermediate Beginner

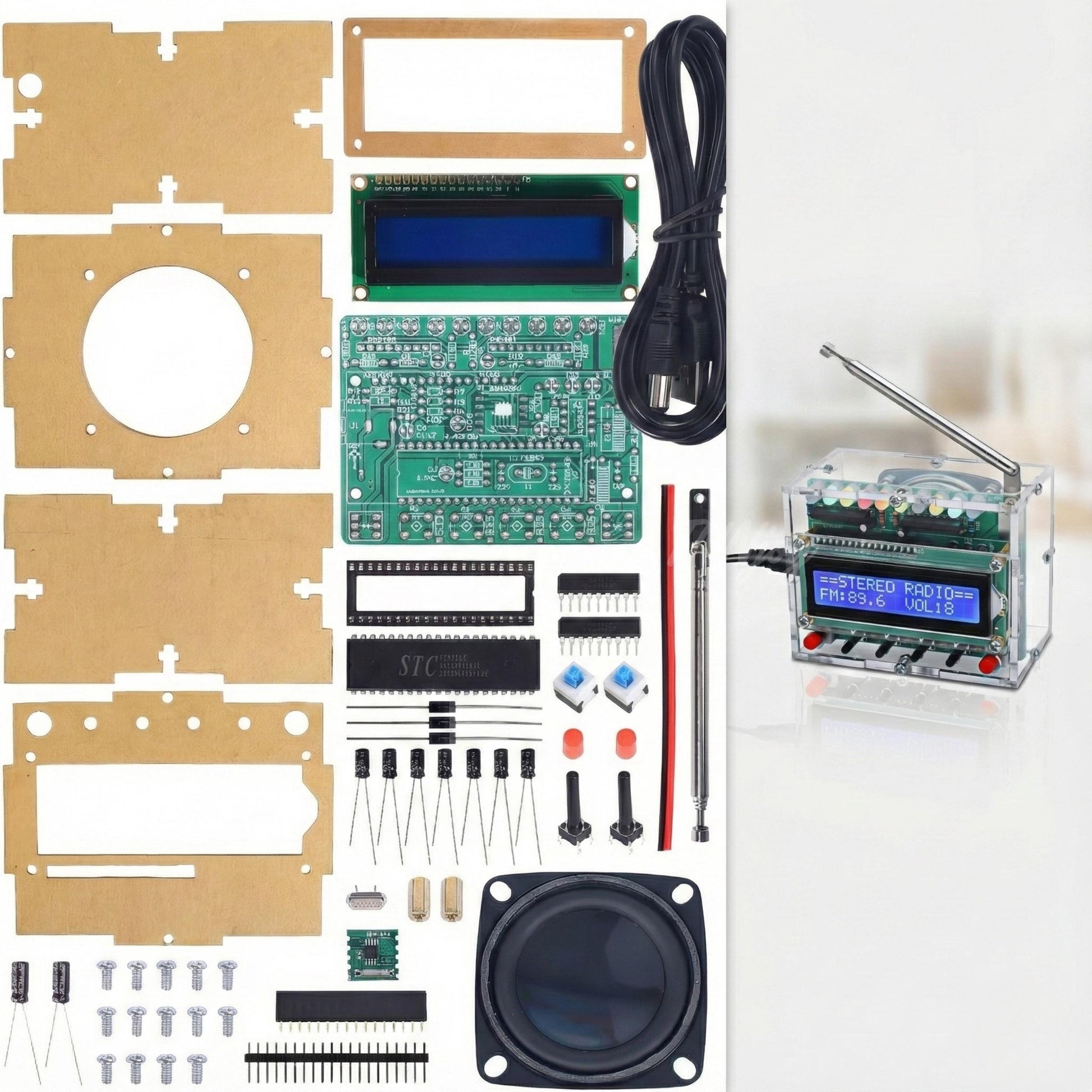

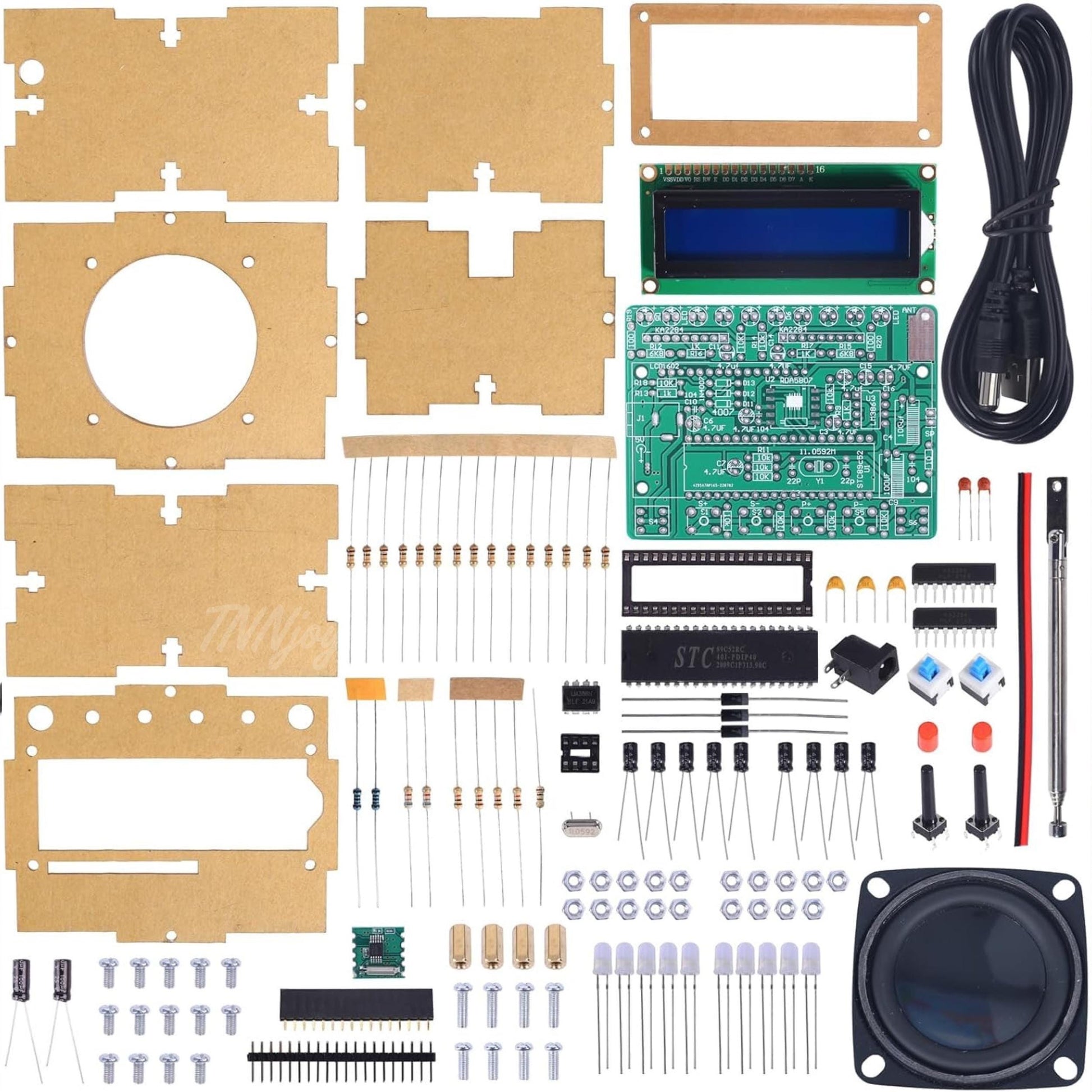

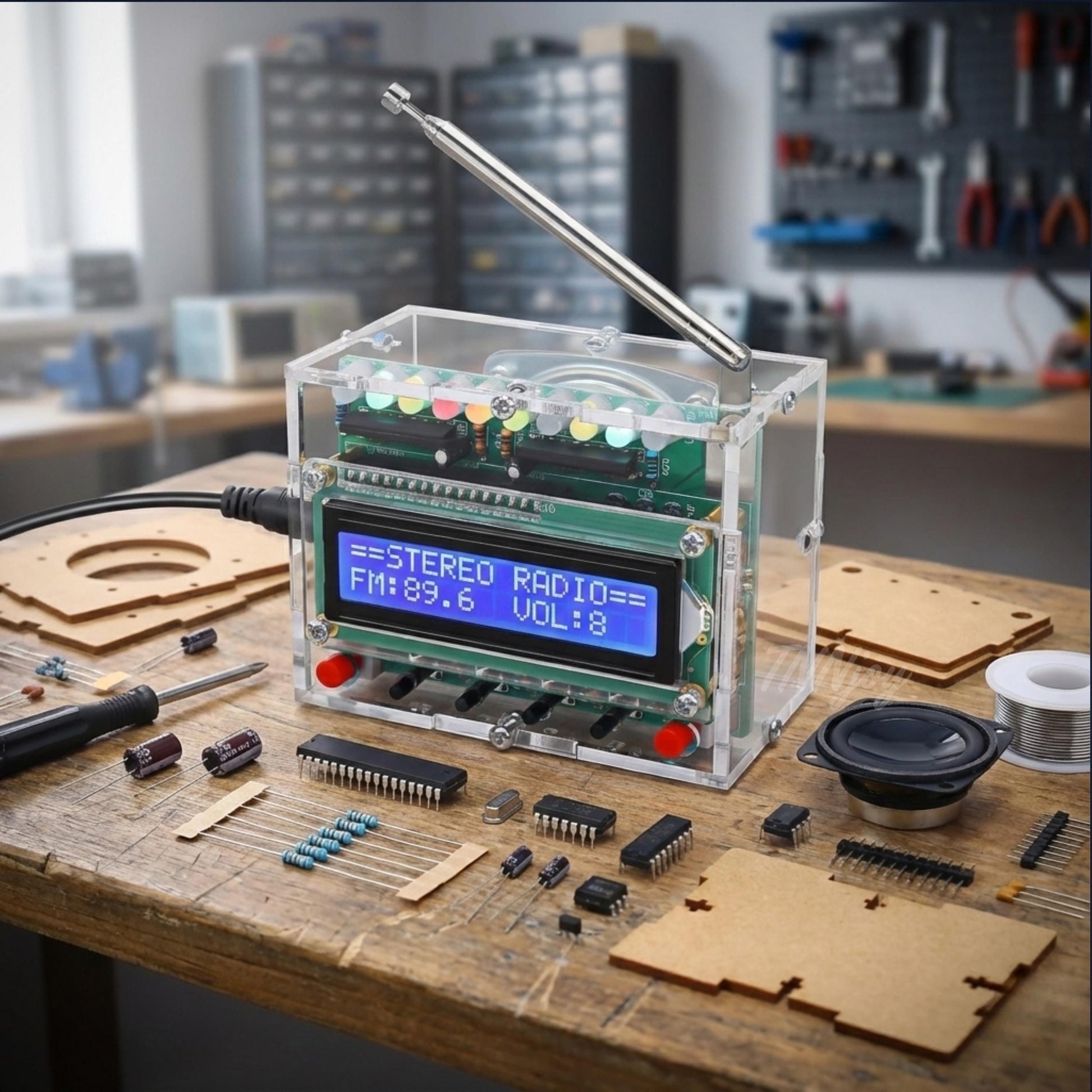

What is Inside the Package:
1 x Pre-printed Professional PCB Mainboard
1 x Digital OLED Screen Module
1 x Onboard Audio Speaker Unit & Telescopic Antenna
1 x Complete Electronic Component Pack (Resistors, Capacitors, ICs, Switches)
1 x Transparent Acrylic Enclosure Case Pack
1 x Printed Assembly Guide (QR Code Download Link included)
Safety Note: Soldering iron required. Contains small electronic components. Not suitable for children under 3 years.
