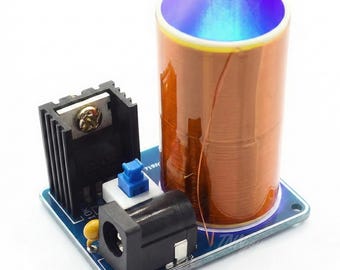

Spark your passion for physics, electromagnetic fields, and soldering with the DIY Mini Tesla Coil Kit BD243C!
Curated and quality-tested by TNNJoy for electronics hobbyists, STEM students, and young engineers (ages 14+), this entry-level DIY kit allows you to assemble a fully functional miniature Tesla coil from scratch. Powered by a high-power BD243C NPN transistor and secondary copper winding coil, this kit demonstrates high-frequency AC wireless power transmission by lighting up neon bulbs and gas discharge tubes right in mid-air!
Key Features & Science Highlights:
Wireless Power Transmission Demonstration: Generates a high-frequency electromagnetic field that wirelessly illuminates neon bulbs, fluorescent tubes, and gas discharge indicators when brought close to the copper secondary coil.
BD243C High-Power Transistor Core: Driven by an authentic BD243C power transistor with an aluminum heatsink for stable thermal dissipation during continuous operation.
Fun & Rewarding Soldering Practice: Excellent beginner soldering project featuring clear component labels on a durable FR-4 glass fiber PCB.
Compact Desktop Science Display: A fascinating physical science gadget that serves as a captivating desk ornament and physics classroom demo.
Dual Audio / Power Input Options: Includes 3.5mm audio jack terminals allowing high-frequency plasma spark modulation to play subtle music tones.
Specifications:
Board PCB Size: 4.0 cm x 3.1 cm / 1.57 in x 1.22 in
Operating Voltage: DC 9V – 12V (Standard 12V 1A DC Power Supply Adapter)
Power Output: ~15W
SKU: ELC-22
Recommended Age: 14+ (High School Physics, STEM Hobbyist)
Assembly Difficulty: Beginner Soldering (★★2/5)
What is Inside the Custom Box:
1 x Pre-wound Secondary Copper Wire Coil
1 x FR-4 Printed Circuit Board (PCB)
1 x BD243C NPN Power Transistor & Aluminum Heatsink
1 x 3.5mm Audio Input Socket Terminal
1 x LED Status Indicator & Resistor Set
1 x 5.5mm DC Power Input Jack
1 x Step-by-Step Assembly Instruction Manual
Safety Note: Requires soldering iron for assembly. Produces low-power high-frequency electromagnetic sparks. Do not touch heat sink during long operations. Not suitable for children under 3 years.
