Master Signal Measurement & Soldering with a Compact Digital Oscilloscope

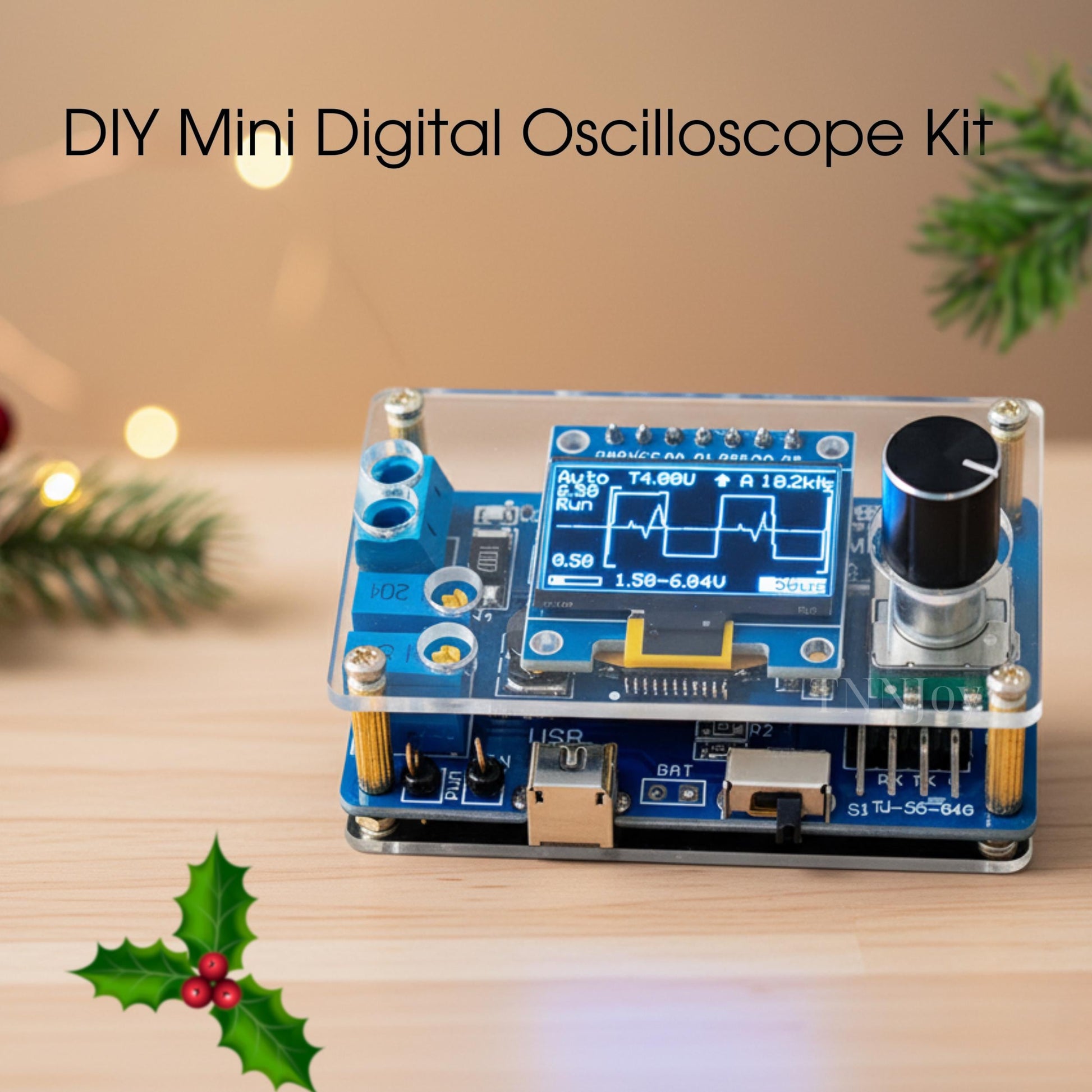

Dive into practical electronics with the DIY Mini Digital Oscilloscope Kit! Powered by an STC8K8A microcontroller and featuring a crisp 0.96-inch OLED display, this kit lets you visualize real-time electrical waveforms, measure signal frequencies, and hone your Through-Hole Soldering skills.
āØ Key Features:

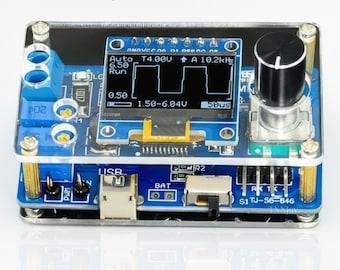

Clear 0.96-Inch Graphic OLED Display: Real-time waveform rendering with adjustable timebase and voltage scaling for clear signal analysis.

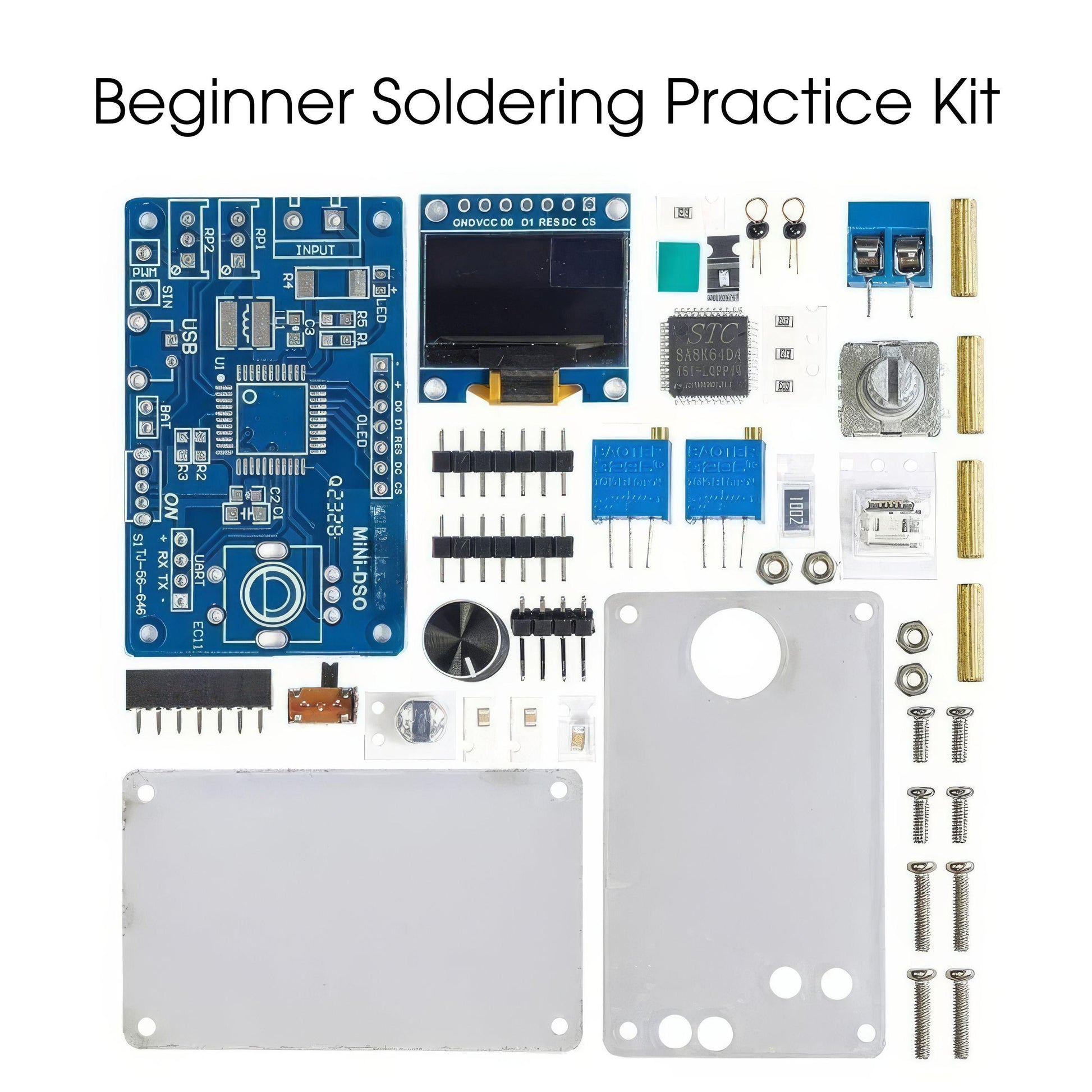

Hands-On STEM Soldering Project: Perfect for engineering students, makers, and electronics hobbyists to practice component placement and PCB soldering.

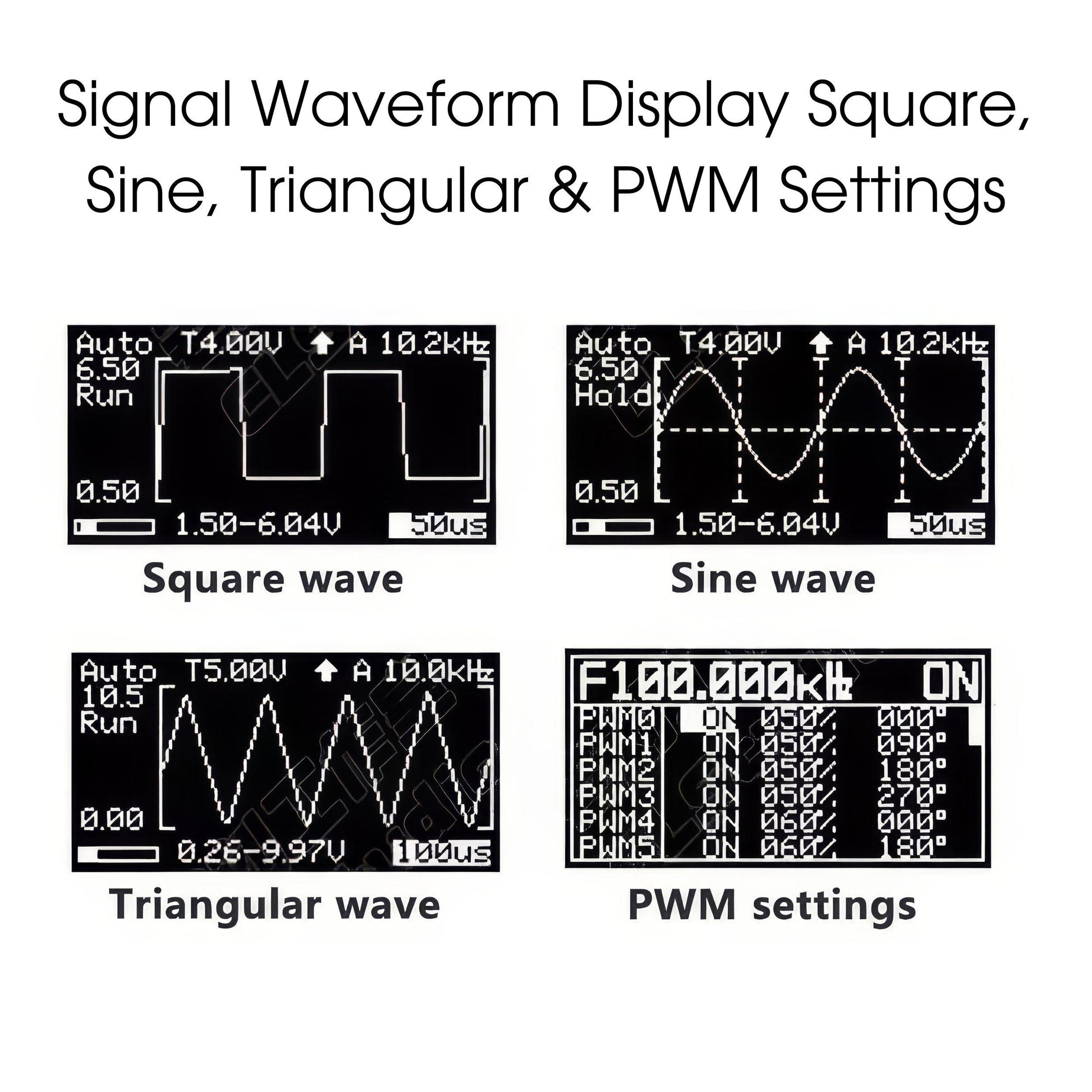

Multi-Function Measurement Tool: Measures frequency, peak-to-peak voltage, duty cycle, and signal parameters for basic circuit testing.

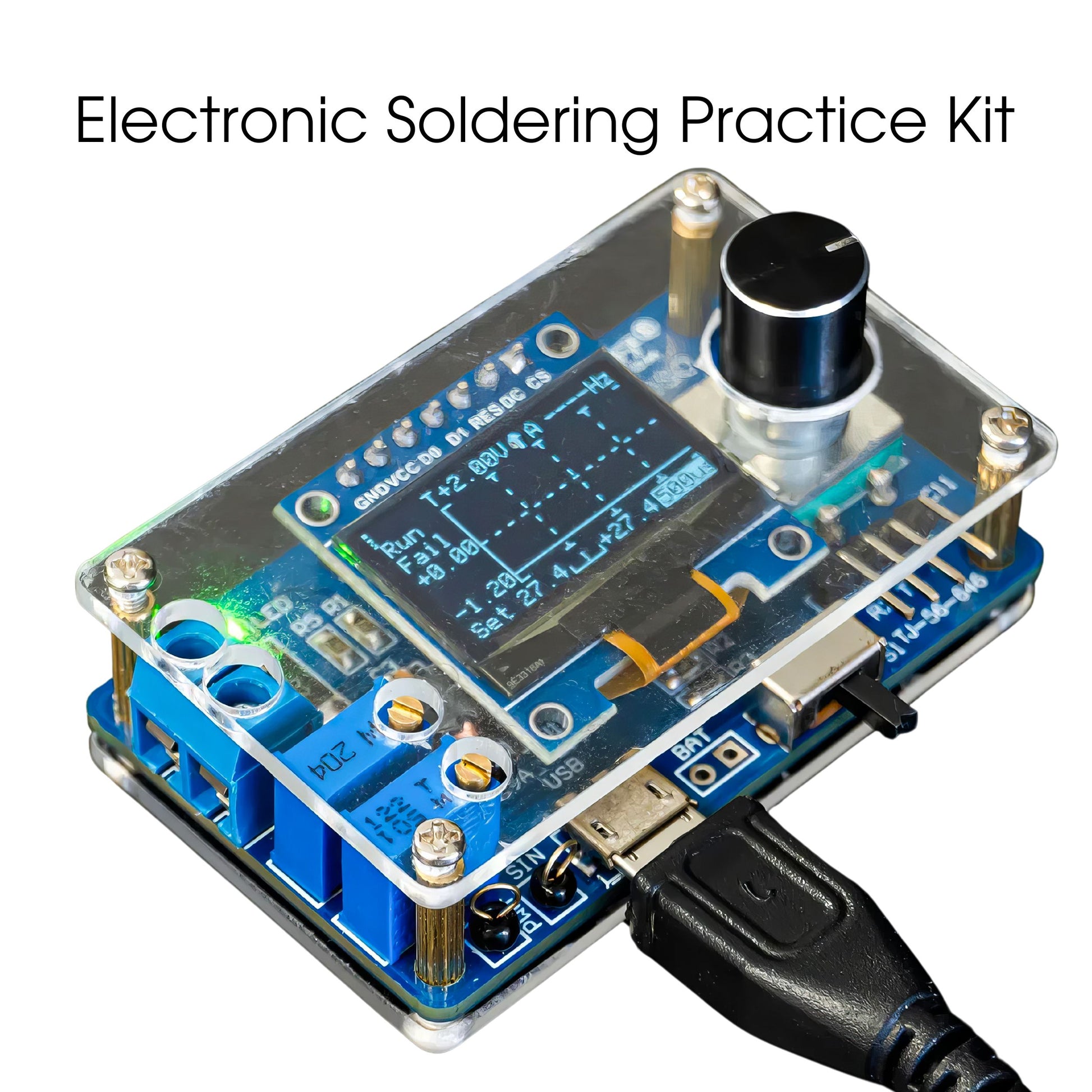

Compact Desktop & Lab Tool: Lightweight acrylic casing design powered easily via standard Mini USB / 5V DC power input.
š Technical Specifications:
SKU: ELC-13
Microcontroller Core: STC8K8A Single Chip Processor
Display Module: 0.96-inch Monochrome OLED
Power Input: 5V DC (USB Powered)
Skill Level: Beginner to Intermediate Electronics Assembly
š Complete Guide Included:
Includes digital PDF assembly instructions and component troubleshooting guide.
